Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 3000 psig (207 bar)
Working temperature:-17℃ to 232℃

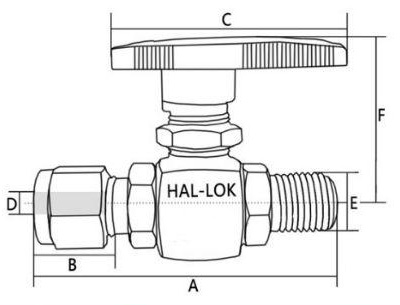

| Basic Ordering Number | Size | Dimensions(mm) | ||||
| D | E | A | B | C | F | |
| QFYT-03M-N4 | 3 | 1/4 | 62 | 14 | 51 | 37 |
| QFYT-06M-N4 | 6 | 1/4 | 65 | 15.5 | 51 | 37 |
| QFYT-08M-N4 | 8 | 1/4 | 68.5 | 16 | 51 | 37 |
| QFYT-10M-N6 | 10 | 3/8 | 70.5 | 18.4 | 51 | 37 |
| QFYT-12M-N6 | 12 | 3/8 | 84 | 23 | 41 | 45 |
| QFYT-02-N4 | 1/8 | 1/4 | 47 | 51 | 32 | 37 |
| QFYT-04-N6 | 1/4 | 3/8 | 56 | 51 | 32 | 37 |
| QFYT-06-N4 | 3/8 | 1/4 | 62 | 66.5 | 29 | 45 |
| QFYT-08-N6 | 1/2 | 3/8 | 64 | 66.5 | 29 | 45 |
| QFYT-12-N8 | 3/4 | 1/2 | 102.5 | 24.2 | 81 | 60 |
| QFYT-16-N16 | 1 | 1 | 110 | 81 | 52 | 60 |
