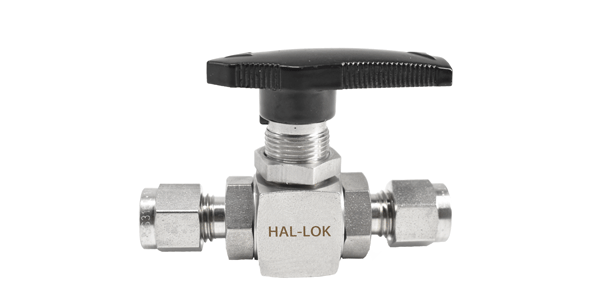

High-Pressure Ball Valve with Ferrule
High Pressure Instrumentation Ball Valve Double Ferrule Straight Type
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Working pressures up to 3000 psig (207 bar)

  • Working temperature:-17¡æ to 232¡æ


Ordering

Number

Tube

OD

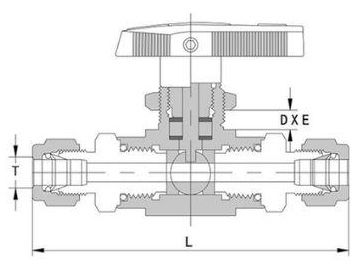

Dimensions,mm
LD X EOrifice

YQTT-2

1/8

73

16 x 6.4

2.5

YQTT-4

1/4

85

16 x 6.4

4.3

YQTT-6

3/8

97

20 x 6.4

6.5

YQTT-8

1/2

105

16 x 6.6

10.4

YQTT-12

3/4

113

23 x 9.7

10.4

YQTT-3M

3mm

73

23 x 9.7

2.5

YQTT-4M

4mm

73

16 x 6.4

2.5

YQTT-6M

6mm

85

16 x 6.4

4.3
YQTT-8M

8mm

97

16 x 6.4

4.3
YQTT-10M

10mm

97

16 x 6.4

6.5
YQTT-12M

12mm

105

20 x 6.4

6.5

YQTT-14M

14mm

105

20 x 6.4

10.4
YQTT-16M

16mm

105

23 x 97

10.4

YQTT-18M

18mm

113

23 x 97

10.4
YQTT-20M20mm11323 x 9710.4


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
