Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 3000 psig (207 bar)
Working temperature:-17℃ to 2

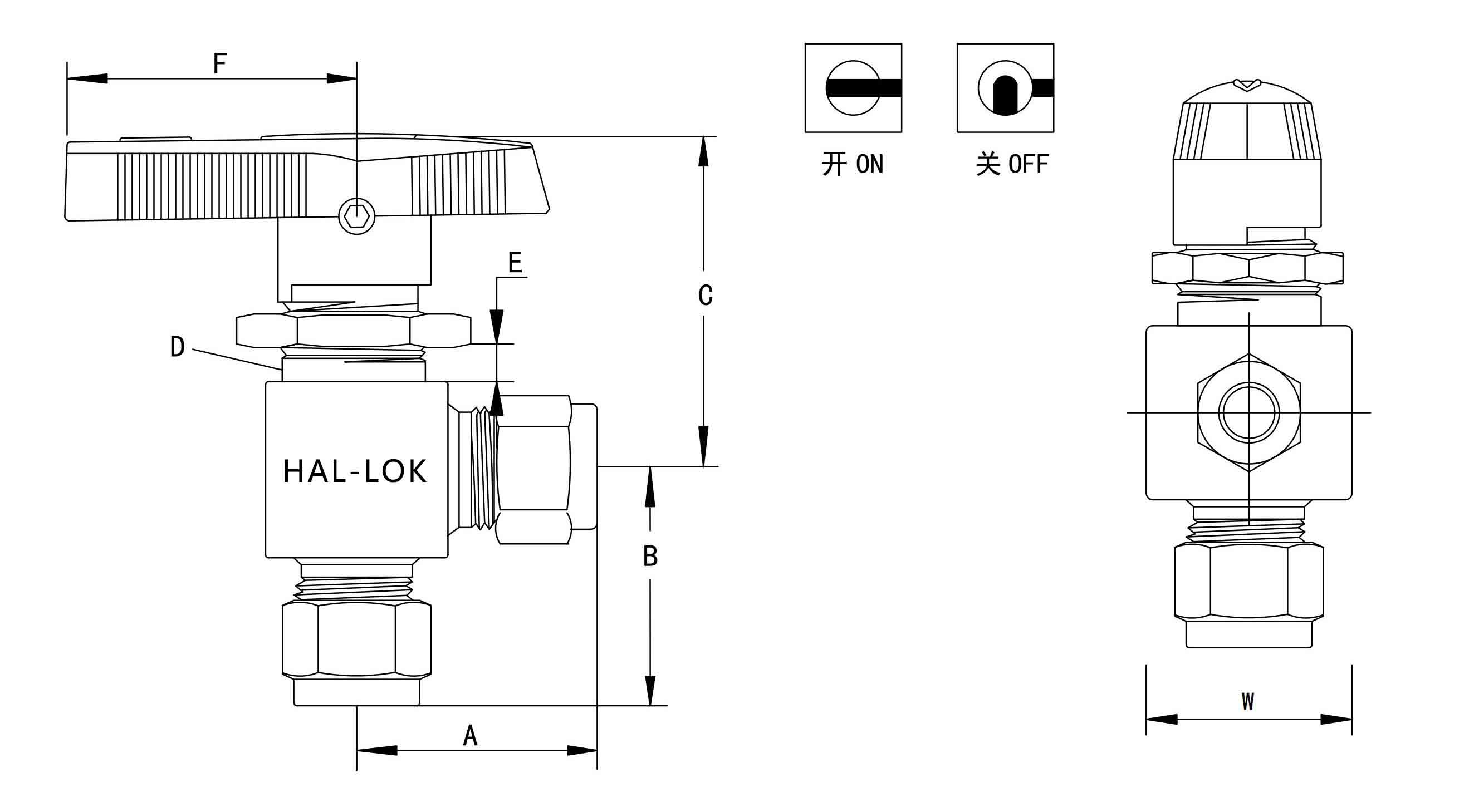

Ordering Number | TubeOD | Orifice | Cv | Dimensions | ||||||
| A | B | C | D | E | F | W | ||||
| Dimensions,in. | ||||||||||
JTK-2 | 1/8 | 0.09 | 0.15 | 1.02 | 1.02 | 1.37 | 0.60 | 1/4 | 1.27 | 0.59 |
JTK-3 | 3/16 | 0.13 | 0.35 | 1.11 | 1.11 | 1.37 | 0.60 | 1/4 | 1.27 | 0.59 |
JTK-4 | 1/4 | 0.19 | 0.90 | 1.21 | 1.21 | 1.48 | 0.79 | 1/4 | 1.27 | 0.79 |
JTK-6 | 3/8 | 0.28 | 2.00 | 1.46 | 1.46 | 2.08 | 1.14 | 3/8 | 1.51 | 1.13 |
| JTK-8 | 1/2 | 0.41 | 4.60 | 1.75 | 1.75 | 2.45 | 1.51 | 3/8 | 2.37 | 1.51 |
| Dimensions,mm | ||||||||||
JTK-3M | 3 | 2.4 | 0.15 | 25.6 | 25.6 | 34.6 | 15.2 | 6.5 | 32.1 | 14.8 |
JTK-6M | 6 | 4.8 | 0.90 | 30.1 | 30.1 | 37.4 | 15.2 | 6.5 | 32.1 | 19.9 |
| JTK-8M | 8 | 4.8 | 0.90 | 31.3 | 31.3 | 37.4 | 19.9 | 6.5 | 38.2 | 19.9 |
| JTK-10M | 10 | 7.1 | 2.00 | 36.6 | 36.6 | 52.6 | 28.8 | 9.8 | 43.1 | 28.6 |
| JTK-12M | 12 | 10.3 | 4.60 | 44.3 | 44.3 | 62.1 | 38.2 | 9.8 | 60.1 | 38.1 |
Ferrule Tee Internal Thread Ball Valve
Internal Thread Right-Angle Ball Valve
Internal Thread Air Source Ball Valve
Ball Valve with External Threaded Ferrule
High-Pressure Ball Valve with Ferrule
2 Way Double Ferrule Ball Valve
2 Way Double Ferrule Angle-Pattern Ball Valve
Ferrule Tee Ball Valve
Double Ferrule Three Way Ball Valve
Hex Ball Valve with Ferrule

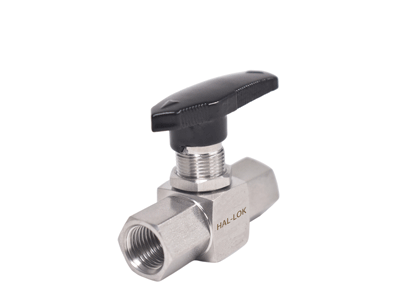

High-Pressure Female Threaded Ball Valve

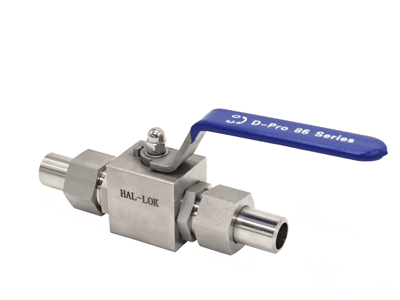

High Pressure Butt Weld Ball Valve
