Male Connectors ISO/BSP Parallel Thread(G)

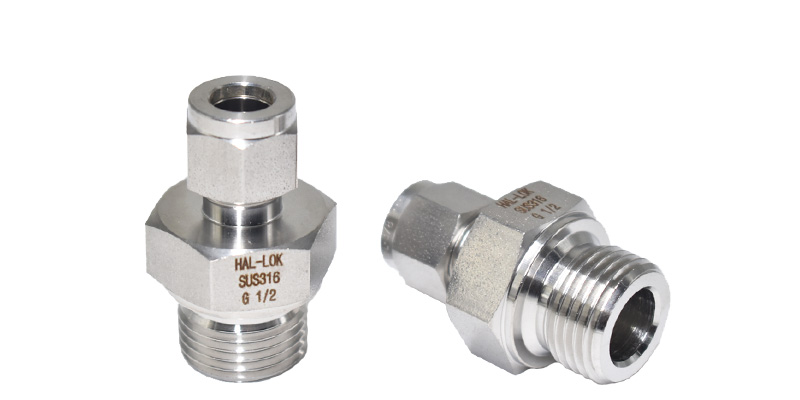

Instrument Tube Fittings Stainless Steel Male Connector ISO/BSP Parallel Thread
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature: -4 to 392℉(-20 to 200℃)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.



Tube

OD

Thread

size

Basic

Ordering

Number

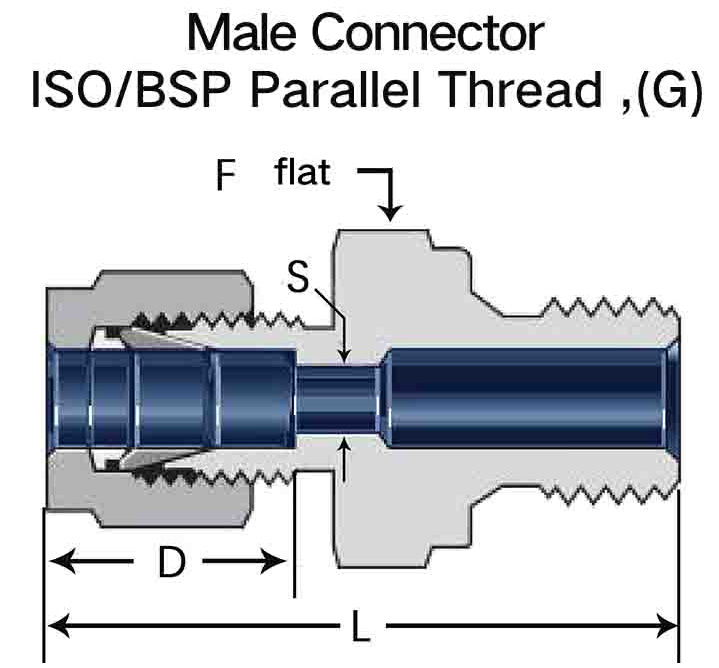

Dimensions,in
LDSF

1/8

1/8

SKTB-2-2G

1.36

0.55

0.14

9/16

1/4

SKTB-2-4G

1.55

3/4

3/8

SKTB-2-6G

1.58

7/8

1/4

1/8

SKTB-4-2G

1.45

0.65

0.21

9/16

1/4

SKTB-4-4G

1.64

0.24

3/4

3/8

SKTB-4-6G

1.67

0.24

7/8

1/2

SKTB-4-8G

1.75

0.24

1 1/16

3/8

1/8

SKTB-6-2G

1.54

0.71

0.21

5/8

1/4

SKTB-6-4G

1.70

0.28

3/4

3/8

SKTB-6-6G

1.73

0.33

7/8

1/2

SKTB-6-8G

1.81

0.33

1 1/16

1/2

1/4

SKTB-8-4G

1.81

0.95

0.28

13/16

3/8

SKTB-8-6G

1.84

0.36

7/8

1/2

SKTB-8-8G1.92

0.46

1 1/16

3/4

1/2

SKTB-12-8G1.97

1.01

0.52

1 1/16

3/4

SKTB-12-12G2.10

0.67

1 5/16

1

1/2

SKTB-16-8G

2.241.28

0.20

1 3/8

3/4SKTB-16-12G2.32

0.68

1 3/8

1SKTB-16-16G2.400.831 5/8


Tube

OD

Thread

size

in.

Basic

Ordering

Number

Dimensions,mm
LDSF
2

1/8

SKTB-2M-2G

33.8

13.4

2.2

14.5
3

1/8

SKTB-3M-2G

33.8

13.4

2.9

14.5

1/4

SKTB-3M-4G

38.6

19.5

4

1/8

SKTB-4M-2G

34.5

14.2

2.9

14.5

6

1/8

SKTB-6M-2G

36.1

15.8

4.5

14.5

1/4

SKTB-6M-4G

40.9

5.3

19.5

3/8

SKTB-6M-6G

41.6

5.3

22.5

1/2

SKTB-6M-8G

43.7

5.3

27.5

8

1/8

SKTB-8M-2G

37.2

16.7

4.5

15.5

1/4

SKTB-8M-4G

41.9

6.9

19.5

3/8

SKTB-8M-6G

42.7

6.9

22.5

1/2

SKTB-8M-8G

44.7

6.9

27.5

10

1/4

SKTB-10M-4G

42.7

17.7

6.4

19.5

3/8

SKTB-10M-6G

43.4

8.4

22.5

1/2

SKTB-10M-8G

45.5

8.4

27.5

12

1/4

SKTB-12M-4G

45.0

23.3

6.4

22.5

3/8

SKTB-12M-6G

46.0

8.4

22.5

1/2

SKTB-12M-8G

48.0

10.0

27.5

3/4

SKTB-12M-12G

52.6

10.0

35.5

14

3/8

SKTB-14M-6G

44.4

24.9

8.4

24.5

1/2

SKTB-14M-8G

48.0

11.6

27.5

15

3/8

SKTB-15M-6G

46.0

24.9

8.4

24.5

1/2

SKTB-15M-8G

48.0

12.4

27.5

3/4

SKTB-15M-12G

53.3

12.4

35.5

16

3/8

SKTB-16M-6G

46.0

24.9

8.4

24.5

1/2

SKTB-16M-8G

48.0

12.4

27.5

3/4

SKTB-16M-12G

53.3

13.2

35.5

18

1/2

SKTB-18M-8G

49.3

24.9

12.4

27.5

3/4

SKTB-18M-12G

52.6

15.6

35.5

20

1/2

SKTB-20M-8G

51.0

26.5

12.4

30.5

3/4

SKTB-20M-12G

53.1

16.4

35.5

22

3/4

SKTB-22M-12G

53.1

26.5

16.4

35.5

1

SKTB-22M-16G

55.4

18.8

41.5

25

3/4

SKTB-22M-12G

58.2

31.8

16.4

35.5

1

SKTB-22M-16G

60.2

20.3

41.5

281

SKTB-28M-16G

70.4

37.1

20.3

41.5

1 1/4

SKTB-28M-20G

73.4

22.3

50.5

30

1 1/4

SKTB-30M-20G

77.2

40.1

25.5

50.5

321 1/4SKTB-32M-20G79.742.625.550.5
