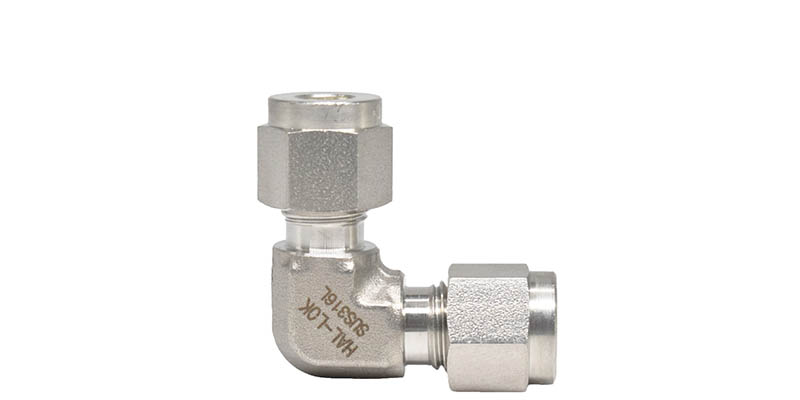

Union Elbow
Stainless Steel Instrument Tube Fittings Union Elbows 1/16"-1" NPT/BSP/UNF
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature: -4 to 392℉(-20 to 200℃)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.

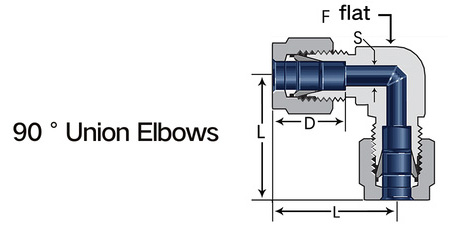

Tube

OD

Basic

Ordering

Number

Dimensions,in.
LDSF

1/8

SKTE-2

0.93

0.55

0.14

3/8

3/16

SKTE-3

1.05

0.59

0.17

1/2

1/4

SKTE-4

1.11

0.65

0.24

1/2

5/16

SKTE-5

1.18

0.69

0.30

9/16

3/8

SKTE-6

1.25

0.71

0.33

5/8

1/2

SKTE-8

1.47

0.95

0.46

13/16

5/8

SKTE-10

1.55

1.01

0.55

15/16

3/4

SKTE-12

1.62

1.01

0.67

1 1/16

7/8

SKTE-14

1.81

1.07

0.77

1 3/8

1

SKTE-16

1.98

1.28

0.93

1 3/8

1 1/8

SKTE-18

2.22

1.28

1.02

1 11/16

1 1/4

SKTE-20

2.72

1.67

1.14

1 11/16

1 1/2

SKTE-24

3.15

2.02

1.39

2
2SKTE-324.272.711.862 3/4


Tube

OD

Basic

Ordering

Number

Dimensions,mm
LDSF

3

SKTE-3M

22.8

13.4

2.9

3/8

4

SKTE-4M

25.9

14.2

2.9

1/2

6

SKTE-6M

27.5

15.8

5.3

1/2

8

SKTE-8M

29.3

16.7

6.9

9/16

10

SKTE-10M

32.0

17.7

8.4

11/16

12

SKTE-12M

36.5

23.3

10.0

13/16

14

SKTE-14M

38.5

24.9

11.6

15/16

15

SKTE-15M

38.5

24.9

12.4

15/16

16

SKTE-16M

38.5

24.9

13.2

15/16

18

SKTE-18M

40.3

24.9

15.6

1 1/16

20

SKTE-20M

45.1

26.5

16.4

1 3/8

22

SKTE-22M

45.1

26.5

18.8

1 3/8

25

SKTE-25M

49.6

31.8

22.3

1 3/8

28

SKTE-28M

64.5

37.1

22.3

41mm

30

SKTE-30M

70.4

40.1

26.7

46mm

32

SKTE-32M

72.8

24.5

29.1

46mm

38

SKTE-38M

84.5

49.9

34.2

55mm

60SKTE-60M106.565.545.72 3/4


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
