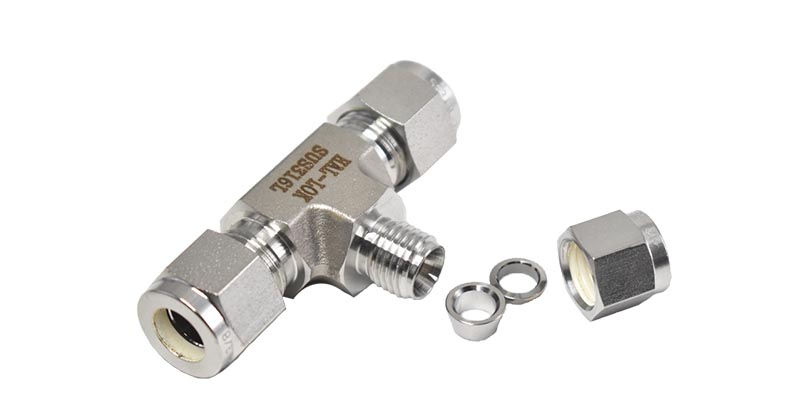

Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/16" to 1" and 3mm to 38mm
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature:-4 to 392¨H(-20 to 200¡æ)
Working pressure:up to 3000psig(206bar)
Silver plated nuts,reduce torque and easy to install.
Corrosion free with excellent chemical resistance
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.
| Tube OD | Basic Ordering Number | Dimensions,in. | ||||||
| T (in) | Tx (in) | A | Ax | D | Dx | E | F | |
3/8 | 1/4 | SKTT-6-4-6 | 2.40 | 1.14 | 0.66 | 0.60 | 0.19 | 5/8 |
1/2 | 1/4 | SKTT-8-4-8 | 2.84 | 1.25 | 0.90 | 0.60 | 0.19 | 13/16 |
3/8 | SKTT-8-6-8 | 1.31 | 0.66 | 0.28 | ||||
5/8 | 3/8 | SKTT-10-6-10 | 3.06 | 1.42 | 0.96 | 0.66 | 0.28 | 1 |
| 3/4 | 3/8 | SKTT-12-6-12 | 3.14 | 1.46 | 0.96 | 0.66 | 0.28 | 1 1/16 |
1/2 | SKTT-12-8-12 | 1.57 | 0.90 | 0.41 | ||||
| 1 | 3/8 | SKTT-16-6-16 | 3.86 | 1.65 | 1.23 | 0.66 | 0.28 | 1 3/8 |
1/2 | SKTT-16-8-16 | 1.76 | 0.90 | 0.41 | ||||
| 3/4 | SKTT-16-12-16 | 1.76 | 0.96 | 0.62 | ||||
1 1/4 | 1 | SKTT-20-16-20 | 5.34 | 2.17 | 1.62 | 1.23 | 0.88 | 1 11/16 |
| 1 1/2 | 1 | SKTT-24-16-24 | 6.20 | 2.36 | 1.97 | 1.23 | 0.88 | 2 |
| 2 | 1 | SKTT-32-16-32 | 8.44 | 2.79 | 2.66 | 1.23 | 0.88 | 2 3/4 |
