Male Connectors

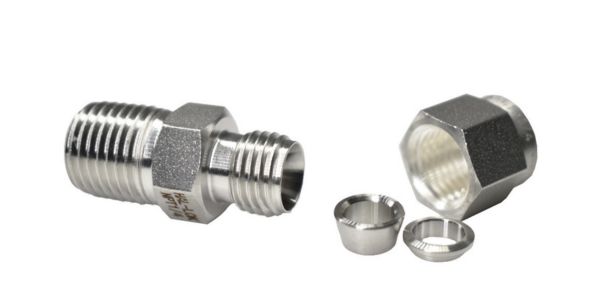

Instrument Tube Fittings Stainless Steel NPT/BSP Male Connectors Straight Fittings
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature: -4 to 392¨H(-20 to 200¡æ)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.


Tube

OD

NPT

in

Basic

Ordering

Number

Dimensions,mm
LDSF
3

1/8

SKTM-3M-2N30.5

12.9

2.412

1/4

SKTM-3M-4N35.614
4

1/8

SKTM-4M-2N31.2

13.7

2.412

1/4

SKTM-4M-4N36.314
61/8SKTM-6M-2N32.8

15.3

4.814
1/4SKTM-6M-4N37.914
3/8SKTM-6M-6N38.418
1/2SKTM-6M-8N44.722
81/8SKTM-8M-2N34.2

16.2

4.815
1/4SKTM-8M-4N38.76.415
3/8SKTM-8M-6N39.96.418
1/2SKTM-8M-8N45.66.422
101/8SKTM-10M-2N36.3

17.2

4.8

18
1/4SKTM-10M-4N40.9

7.1

18
3/8SKTM-10M-6N40.9

7.9

18
1/2SKTM-10M-8N46.5

7.9

22
3/4SKTM-10M-12N48.0

7.9

27
121/8SKTM-12M-2N38.8

22.8

4.8

22
1/4SKTM-12M-4N43.4

7.1

22
3/8SKTM-12M-6N43.4

9.5

22
1/2SKTM-12M-8N49.0

9.5

22
3/4SKTM-12M-12N50.5

9.5

27
141/4SKTM-14M-4N

44.1

24.47.124
3/8SKTM-14M-6N

44.1

9.5
1/2SKTM-14M-8N

49.0

11.1
151/2SKTM-15M-8N

49.0

24.411.924
163/8SKTM-16M-6N

44.1

24.4

9.5

24
1/2SKTM-16M-8N

49.0

11.9

24
3/4SKTM-16M-12N

50.5

12.7

27
181/2SKTM-18M-8N

50.5

24.4

11.9

27
3/4SKTM-18M-12N

15.1

201/2SKTM-20M-8N52.3

26.0

11.9

30
3/4SKTM-20M-12N

15.9

223/4SKTM-22M-12N52.3

26.0

15.9

30
1SKTM-22M-16N57.1

18.3

35
25

1/2

SKTM-25M-8N57.5

31.3

11.9

35

3/4

SKTM-25M-12N57.5

15.9

1SKTM-25M-16N62.3

21.8

281SKTM-28M-16N72.4

36.6

21.8

41
1 1/4SKTM-28M-20N73.146
301 1/4SKTM-30M-20N77.239.626.246
321 1/4SKTM-32M-20N79.642.028.646
381 1/2SKTM-38M-24N91.649.433.755


Tube

OD

NPT

Basic

Ordering

Number

Dimensions,in.
LDSF

1/8

1/8

SKTM-2-2N

1.20

0.50

0.09

7/16

1/4

SKTM-2-4N

1.40

9/16

3/8

SKTM-2-6N

1.41

11/16

1/2

SKTM-2-8N

1.66

7/8

3/16

1/8

SKTM-3-2N

1.23

0.54

0.12

7/16

1/4

SKTM-3-4N

1.43

9/16

1/4

1/8

SKTM-4-2N

1.29

0.60

0.19

1/2

1/4

SKTM-4-4N

1.49

0.19

9/16

3/8

SKTM-4-6N

1.51

0.19

11/16

1/2

SKTM-4-8N

1.76

0.19

7/8

3/4

SKTM-4-12N

1.82

0.19

1 1/16

5/161/8

SKTM-5-2N

1.34

0.64

0.19

9/16

1/4

SKTM-5-4N

1.52

0.25

9/16

3/8

SKTM-5-6N

1.54

0.25

11/16

3/8

1/8

SKTM-6-2N

1.39

0.66

0.19

5/8

1/4

SKTM-6-4N

1.57

0.28

5/8

3/8

SKTM-6-6N

1.57

0.28

11/16

1/2

SKTM-6-8N

1.82

0.28

7/8

3/4

SKTM-6-12N

1.88

0.28

1 1/16
1

SKTM-6-16N

2.14

0.28

1 3/8

1/2

1/8

SKTM-8-2N

1.53

0.90

0.19

13/16

1/4

SKTM-8-4N

1.71

0.28

13/16

3/8

SKTM-8-6N

1.71

0.38

13/16

1/2

SKTM-8-8N

1.93

0.41

7/8

3/4

SKTM-8-12N

1.99

0.41

1 1/16

1

SKTM-8-16N

2.25

0.41

1 3/8

5/8

1/4

SKTM-10-4N

1.74

0.96

0 28

15/16

3/8

SKTM-10-6N

1.74

0.38

15/16

1/2

SKTM-10-8N

1.93

0.47

15/16

3/4

SKTM-10-12N

1.99

0.50

1 1/16

3/4

3/8

SKTM-12-6N

1.80

0.96

0.41

1 1/16

1/2

SKTM-12-8N

1.99

0.47

1 1/16

3/4

SKTM-12-12N

1.99

0.62

1 1/16

1SKTM-12-16N

2.25

0.62

1 3/8

7/8

1/2

SKTM-14-8N

1.99

1.02

0.47

1 3/16

3/4

SKTM-14-12N

1.99

0.62

1 3/16

1

SKTM-14-16N

2.25

0.72

1 3/8

1

1/2

SKTM16-8N

1.99

1.23

0.47

1 3/8

3/4

SKTM16-12N

1.99

0.62

1

SKTM16-16N

2.25

0.88

1 1/81

SKTM-18-16N

2.45

1.23

0.88

1 5/8

1 1/41

SKTM-20-16N

3.04

1.62

0.88

1 3/4

1 1/4

SKTM-20-20N

1.09

1 1/21 1/2

SKTM-24-24N

3.50

1.97

1.34

2 1/8

22SKTM-32-32N4.472.661.812 3/4


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
