Male Elbows

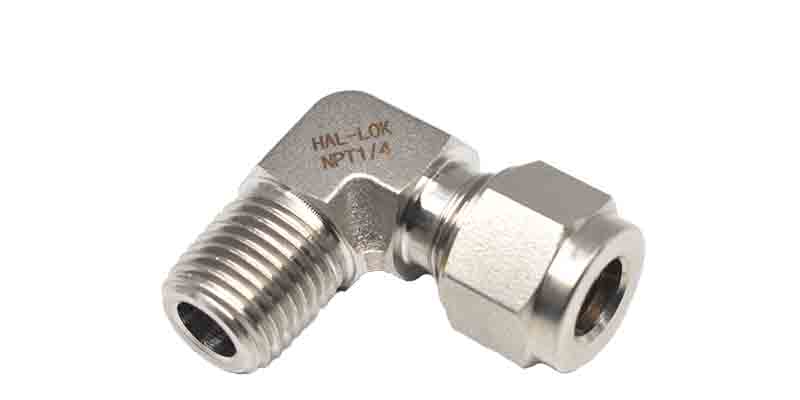

Double Ferrule Instrument Compression 90 Degree Tube Fittings Male Elbows NPT
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Available materials:SS304,SS316,904L,Alloy,etc.

  • Available in size:1/16" to 1" and 3mm to 38mm

  • Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.

  • Working temperature:-4 to 392¨H(-20 to 200¡æ)

  • Working pressure:up to 3000psig(206bar)

  • Silver plated nuts,reduce torque and easy to install.

  • Corrosion free with excellent chemical resistance

  • Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.


NOTE: If ordering R threads, add

RT to the ordering number.

Example:SKTN-1-1RT

Example:SKTN-3M-2RT


Tube

OD

NPT

Basic

Ordering

Number

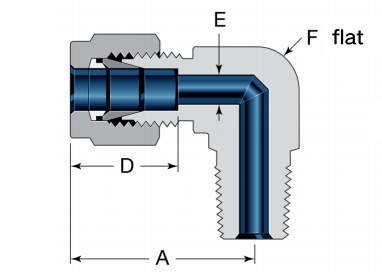

Dimensions,in.
ADEF

1/16

1/16

SKTN-1-1N

0.80

0.39

0.10

7/16

1/8

SKTN-1-2N

1/8

1/16

SKTN-2-1N

0.98

0.55

0.14

7/16

1/8

SKTN-2-2N

0.98

7/16

1/4

SKTN-2-4N

1.02

1/2

3/16

1/8

SKTN-3-2N

1.05

0.59

0.17

1/2

1/4

SKTN-3-4N

1/4

1/16

SKTN-4-1N

1.11

0.65

0.17

1/2

1/8

SKTN-4-2N

1.11

0.24

1/2

1/4

SKTN-4-4N

1.11

0.24

1/2

3/8

SKTN-4-6N

1.22

0.24

11/16

1/2

SKTN-4-8N

1.30

0.24

13/16

5/16

1/8

SKTN-5-2N

1.18

0.69

0.24

9/16

1/4

SKTN-5-4N

1.18

0.30

9/16

3/8

SKTN-5-6N

1.23

0.30

11/16

3/8

1/8

SKTN-6-2N

1.23

0.71

0.24

5/8

1/4

SKTN-6-4N

1.23

0.33

5/8

3/8

SKTN-6-6N

1.28

0.33

11/16

1/2

SKTN-6-8N

1.36

0.33

13/16

3/4

SKTN-6-12N

1.51

0.33

1 1/16

1/2

1/4

SKTN-8-4N

1.47

0.95

0.33

13/16

3/8

SKTN-8-6N

1.47

0.43

13/16

1/2

SKTN-8-8N

1.47

0.46

13/16

3/4

SKTN-8-12N

1.62

0.46

1 1/16

5/8

3/8

SKTN-10-6N

1.55

1.01

0.43

15/16

1/2

SKTN-10-8N

1.55

0.52

15/16

3/4

SKTN-10-12N

1.62

0.55

1 1/16

3/41/2

SKTN-12-8N

1.62

0.01

0.52

1 1/16

3/4

SKTN-12-12N

0.67

7/8

3/4

SKTN-14-12N

1.81

0.07

0.67

1 3/8

1

3/4

SKTN-16-12N

1.98

1.28

0.67

1 3/8

1

SKTN-16-16N

0.93

1 1/4

1 1/4

SKTN-20-20N

2.72

1.67

1.14

1 11/16

1 1/2

1 1/2

SKTN-24-24N

3.15

2.02

1.39

2
22SKTN-32-32N4.27

2.71

0.86

2 3/4


Tube

OD

NPT

in.

Basic

Ordering

Number

Dimensions,mm
ADEF,in

3

1/8

SKTN-3M-2N

24.113.42.9

7/16

1/4

SKTN-3M-4N

25.1

1/2

4

1/8

SKTN-4M-2N

25.914.22.9

1/2

1/4

SKTN-4M-4N

6

1/8

SKTN-6M-2N

27.5

15.85.3

1/2

1/4

SKTN-6M-4N

27.5

1/2

3/8

SKTN-6M-6N

30.3

11/16

1/2

SKTN-6M-8N

32.3

13/16

8

1/8

SKTN-8M-2N

29.3

16.7

5.3

9/16

1/4

SKTN-8M-4N

29.3

6.9

9/16

3/8

SKTN-8M-6N

31.1

6.9

11/16

1/2

SKTN-8M-8N

33.1

6.9

13/16
10

1/8

SKTN-10M-2N

32.0

17.7

5.3

11/16

1/4

SKTN-10M-4N

32.0

7.6

11/16

3/8

SKTN-10M-6N

32.0

8.4

11/16

1/2

SKTN-10M-8N

34.0

8.4

13/16

12

1/4

SKTN-12M-4N

36.5

23.3

7.6

13/16

3/8

SKTN-12M-6N

36.5

10.0

13/16

1/2

SKTN-12M-8N

36.5

10.0

13/16

3/4

SKTN-12M-10N

40.3

10.0

1 1/16

15

1/2

SKTN-15M-8N

38.5

24.9

12.4

15/16

16

3/8

SKTN-16M-6N

38.5

24.9

10.0

15/16

1/2

SKTN-16M-8N

38.5

12.4

15/16

3/4

SKTN-16M-12N

40.3

13.2

1 1/16

18

1/2

SKTN-18M-8N

40.3

24.9

12.4

1 1/16

3/4

SKTN-18M-12N

15.6

20

1/2

SKTN-20M-8N

45.1

26.5

12.4

1 3/8

3/4

SKTN-20M-12N

15.6

22

3/4

SKTN-22M-12N

45.1

26.5

15.6

1 3/8

1

SKTN-22M-16N

18.8

253/4

SKTN-25M-12N

49.6

31.8

16.4

1 3/8

1

SKTN-25M-16N

22.3

30

1 1/4

SKTN-30M-20N

70.4

40.1

26.7

1 11/16

32

1 1/4

SKTN-32M-20N

72.8

42.5

28.3

2
38

1 1/2

SKTN-38M-24N84.549.934.22 3/4
