Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/16" to 1" and 3mm to 38mm
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature:-4 to 392¨H(-20 to 200¡æ)
Working pressure:up to 3000psig(206bar)
Silver plated nuts,reduce torque and easy to install.
Corrosion free with excellent chemical resistance
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.

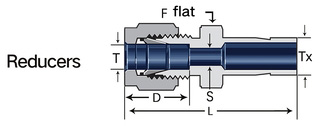

| Tube OD | Basic Ordering Number | Dimensions,mm | ||||
| T(mm) | Tx(in) | L | D | S | F | |
| 3 | 1/8 | SKG-3M-2 | 33.5 | 12.9 | 2.0 | 12 |
1/4 | SKG-3M-4 | 36.1 | 2.4 | |||
| 4 | 1/4 | SKG-4M-4 | 37.1 | 13.7 | 2.4 | 12 |
| 6 | 1/8 | SKG-6M-2 | 36.9 | 15.3 | 2.0 | 14 |
1/4 | SKG-6M-4 | 39.2 | 4.4 | |||
5/16 | SKG-6M-5 | 40.0 | 4.8 | |||
3/8 | SKG-6M-6 | 40.7 | 4.8 | |||
1/2 | SKG-6M-8 | 46.3 | 4.8 | |||
| 8 | 1/4 | SKG-8M-4 | 40.3 | 16.2 | 4.4 | 15 |
3/8 | SKG-8M-6 | 42.0 | 6.4 | |||
1/2 | SKG-8M-8 | 47.6 | 6.4 | |||
| 10 | 3/8 | SKG-10M-6 | 44.2 | 17.2 | 6.8 | 18 |
1/2 | SKG-10M-8 | 49.8 | 7.9 | |||
| 12 | 1/2 | SKG-12M-8 | 52.3 | 22.8 | 9.3 | 22 |
3/4 | SKG-12M-12 | 53.8 | 9.5 | |||
| 18 | 3/4 | SKG-18M-12 | 56.1 | 24.4 | 14.7 | 27 |
| 1 | SKG-18M-16 | 62.4 | 15.1 | |||
| 25 | 1 | SKG-25M-16 | 69.5 | 31.3 | 20.2 | 35 |
| Tube OD | Basic Ordering Number | Dimensions,mm | ||||
| T | Tx | L | D | S | F | |
1/8 | SKG-2 | 33.5 | 12.9 | 2.0 | 12 | |
1/4 | SKG-4 | 39.2 | 15.3 | 4.4 | 14 | |
3/8 | SKG-6 | 42.0 | 16.2 | 6.4 | 15 | |
1/2 | SKG-8 | 52.3 | 22.8 | 9.3 | 18 | |
| 3/4 | SKG-12 | 56.1 | 24.4 | 14.7 | 27 | |
| 1 | SKG-16 | 69.5 | 31.3 | 20.2 | 35 | |
| Tube OD | Basic Ordering Number | Dimensions,in. | ||||
| T(in) | Tx(mm) | L | D | S | F | |
| 1/8 | 6 | SKG-2-6M | 1.42 | 0.50 | 0.09 | 7/16 |
