Welded Type Check Valve-CHECK VALVES-Product-HAL-LOK

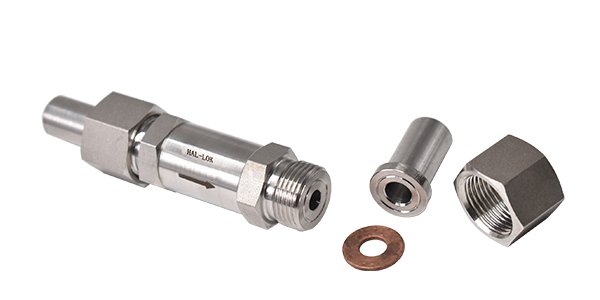

Welded Type Check Valve

Welded Type Check Valve/Instrument Non Return Check Valves

Hotline:

+86 18721872815

product description

Features:

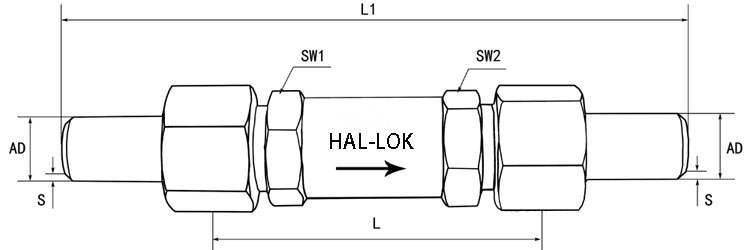

Basic Ordering Number	Pipe O.D AD	S	L	L1	SW1	SW2	Maximum Working Pressure(bar)
Basic Ordering Number	mm						Maximum Working Pressure(bar)
H-CKV-12L-SS	12	2.5	63	116	23	23	200
H-CKV-14L-SS	14	3.0	65	125	27	27	200
H-CKV-18L-SS	18	3.5	69	131	31	31	200
H-CKV-22L-SS	22	4.0	84	148	37	37	200

Related Products

Advantage

Precision-Engineered

Expertly crafted for superior leak-proof performance and extended service life.
High-Pressure Rated

Robust construction guarantees reliable operation in high-pressure environments.
Corrosion Resistant

Manufactured from premium stainless steel to withstand corrosive media.
Fully Interchangeable

Standard dimensions ensure seamless replacement with major international brands.
Rigorously Tested

Every product is stringently inspected under our ISO9001 quality system.
Versatile Applications

Suitable for a wide range of industries, from semiconductors to biopharma.
Premium Materials

High-grade stainless steel core components ensure integrity from the start.
Globally Proven

Trusted by customers worldwide for proven performance and reliability.
