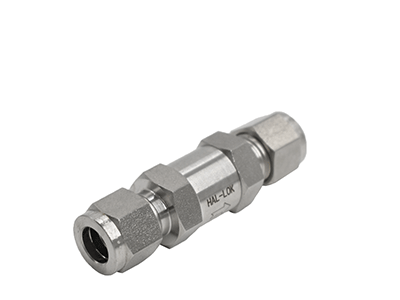

Double Ferrule Check Valve
Double Ferrule Check Valve Hydraulic High Pressure Spring Check Valve
Contact Us Now
Hotline:
+86 18721872815
product description

Features:

  • Working pressures up to 3000 psig (207 bar)

  • Inline check valve stops reversed flow in order to protect instrument

  • Arrow on body indicates flow direction,easy to install

  • Connection type:Tube End and Male/Female Thread

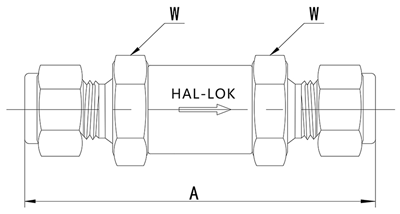

Ordering

Number

Size

Dimensions

AW
Dimensions,in.

2C-SS

1/8

2.21

0.64

4C-SS

1/4

2.39

0.64

6C-SS

3/8

2.49

0.70

8C-SS

1/2

3.04

0.95

12C-SS

3/4

3.49

1.14

16C-SS14.731.38
Dimensions,mm

6C-MM-SS

6

60.6

15.98

10C-MM-SS

10

63.6

17.5

12C-MM-SS1277.123.9


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
