Features:
Working pressures up to 3000 psig (207 bar)

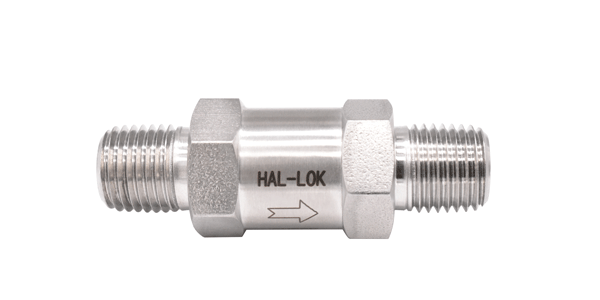

Inline check valve stops reversed flow in order to protect instrument
Arrow on body indicates flow direction,easy to install
Connection type:Tube End and Male/Female Thread

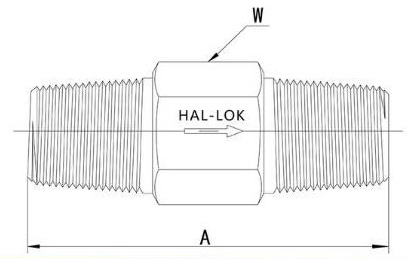

Size NPT in. | Ordering Number | Dimensions.mm | |
| A | W | ||
1/8 | 2CN-SS | 46 | 15.89 |
1/4 | 4CN-SS | 58 | 19.06 |
3/8 | 6CN-SS | 76 | 22.21 |
1/2 | 8CN-SS | 91 | 27.01 |
| 3/4 | 12CN-SS | 105 | 32.01 |
| 1 | 16CN-SS | 123 | 41.21 |
Size RC in. | Ordering Number | Dimensions.mm | |
| A | W | ||
1/8 | 2CR-SS | 46 | 15.89 |
1/4 | 4CR-SS | 58 | 19.06 |
3/8 | 6CR-SS | 76 | 22.21 |
1/2 | 8CR-SS | 91 | 27.01 |
| 3/4 | 12CR-SS | 105 | 32.01 |
| 1 | 16CR-SS | 123 | 41.21 |
