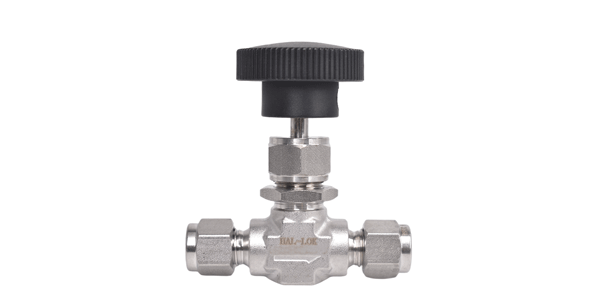

Ferrule Straight Needle Valve

Two Way Straight-Pattern Needle Valve with Double Ferrule

Hotline:

+86 18721872815

product description

Features:

Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 3000 psig (207 bar)
Working temperature:-65¨H(-54¡æ) to 450¨H(232¡æ)

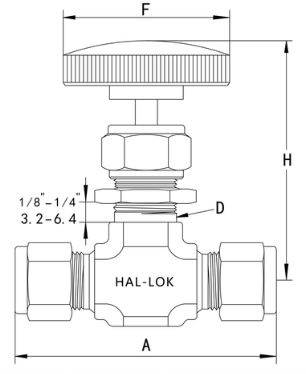

Ordering Number	Tube OD	Orifice	Cv	Dimensions
Ordering Number	Tube OD	Orifice	Cv	A	D	H	F
Dimensions,in.
FMZF-2	1/8	0.080	0.09	1.98	0.48	2.29	1.01
FMZF-4	1/4	0.172	0.37	2.28	0.54	2.51	1.39
FMZF-6	3/8	0.200	0.74	2.59	0.79	2.98	1.89
FMZF-8	1/2	0.375	1.80	3.81	1.04	3.91	3.01
FMZF-12	3/4	0.375	1.80	3.81	1.04	3.91	3.01
Dimensions,mm
FMZF-3M	3	2.0	0.09	49.4	12.3	58.0	25.5
FMZF-6M	6	4.4	0.37	57.8	13.6	63.6	35.2
FMZF-8M	8	4.4	0.37	59.5	13.6	63.6	35.2
FMZF-10M	10	6.4	0.73	66.1	19.9	75.5	4.9
FMZF-12M	12	9.5	1.80	96.6	26.3	99.2	76.3
FMZF-14M	14	9.5	1.80	96.6	26.3	99.2	76.3
FMZF-18M	18	9.5	1.80	96.6	26.3	99.2	76.3

Panel hole size:15mm(1/8); 15mm(1/4); 17mm(3/8); 20mm(1/2)
