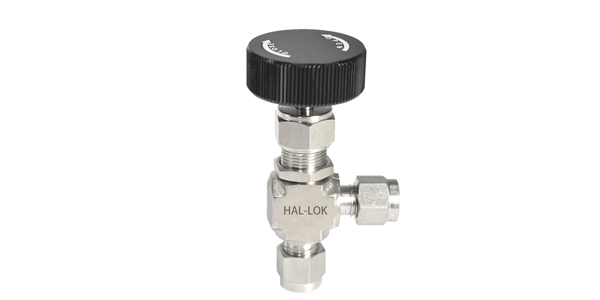

Ferrule Angle Needle Valve

Angle-Pattern Needle Valve/Angle Type Flow Control Valve with Ferrule

Hotline:

+86 18721872815

product description

Features:

Available materials:SS304,SS316,904L,Alloy,etc.
Working pressures up to 3000 psig (207 bar)
Working temperature:-65℉(-54℃) to 450℉(232℃)

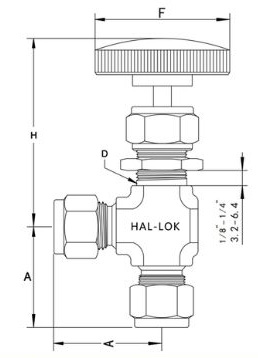

Ordering Number	Tube OD	Orifice	Cv	Dimensions
Ordering Number	Tube OD	Orifice	Cv	A	D	H	F
Dimensions,in.
FASS-2	1/8	0.080	0.09	1.00	0.48	2.29	1.01
FASS-4	1/4	0.172	0.37	1.15	0.54	2.51	1.39
FASS-6	3/8	0.200	0.74	1.31	0.79	2.98	1.89
FASS-8	1/2	0.375	1.80	1.41	1.04	3.91	3.01
FASS-12	3/4	0.375	1.80	1.91	1.04	3.91	3.01
Dimensions,mm
FASS-3M	3	2.0	25.2	49.4	12.3	58.0	25.5
FASS-6M	6	4.4	29.1	57.8	13.6	63.6	35.2
FASS-8M	8	4.4	33.1	59.5	13.6	63.6	35.2
FASS-10M	10	6.4	33.1	66.1	19.9	75.5	4.9
FASS-12M	12	9.5	35.7	96.6	26.3	99.2	76.3
FASS-14M	14	9.5	40.7	96.6	26.3	99.2	76.3
FASS-18M	18	9.5	48.4	96.6	26.3	99.2	76.3

Panel hole size:15mm(1/8); 15mm(1/4); 17mm(3/8); 20mm(1/2)
