Stainless Steel Single-Stage Pressure Regulator

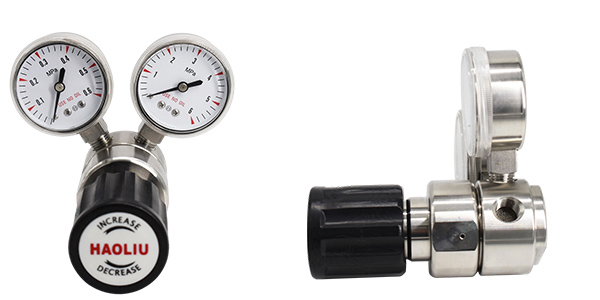

HL8SL Series Stainless Steel Single-Stage Pressure Regulator

Hotline:

+86 18721872815

product description

Features:

Single-stage pressure reducing structure
Two pressure gauges
The body and diaphragm are hard sealed
Female thread:1/4"NPT (female）
The internal structure is easy to purge,built in filter screen
Panel type or wall type installation can be adopted
Needle valve and diaphragm valve can be selected for air outlet

Specifications:

Inlet pressure max.:3000psig
Outlet pressure:0〜25psig,0〜50psig,0〜100psig,0〜250psig,0〜500psig
Operating temperature:-40°F to+165°F(-40°C to+74°C)
Proof pressure:150% of Maximum rated pressure
Leak rate:2x10-8 atm cc/sec He
Cv:0.08

Material of Constructions:

Body:SS316L
Bonnet:304 SS
Diaphragm:Alloy C-276
Valve seat:PCTFE
Valve rod:SS316L

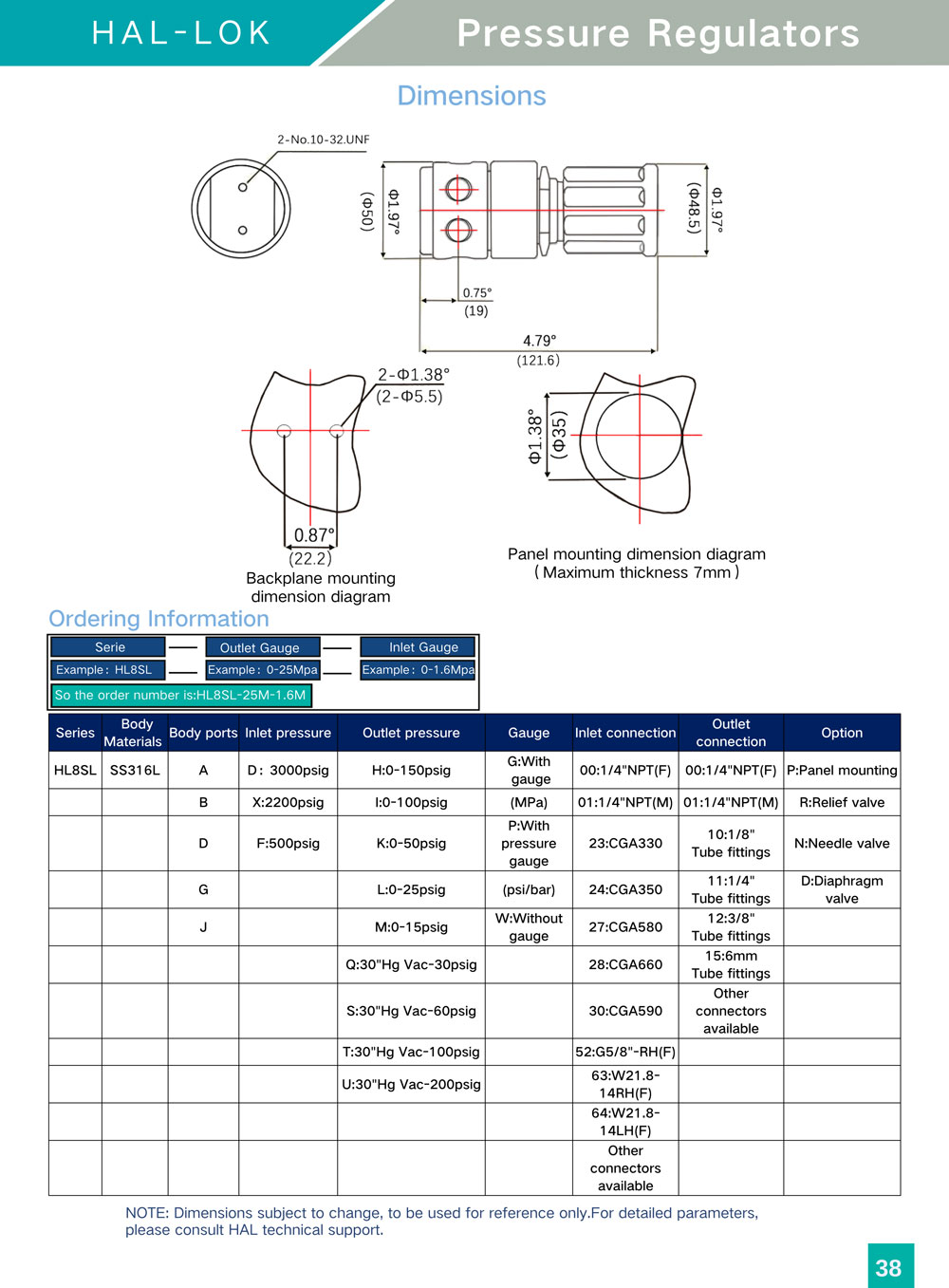

How to order：
Serial Number	——	Intake Pressure Gauge Range	——	Exhaust Pressure Gauge Range

Example: HL8SL	——	Example:0-25Mpa	——	Example:0-1.6Mpa
The order number is: HL8SL-25M-1.6M

Serial Numbe	Base Material	Base Hole Position	Input Pressure	Output Pressure	Pressure Gauge	Air Intake Configuration	Air Exhaust Configuration	Options
HL8SL	SS316L	A	D:3000psig	H:0~150psig	G:With pressure gauge	00:1/4"NPT (F)	00:1/4"NPT(F)	p: Panel Mounting
		B	X:2200psig	I: 0-100psig	(MPa)	01:1/4"NPT(M)	01:1/4"NPT(M)	R: Safety Valve
		D	F: 500psig	K:0-50psig	P:With pressure gauge	23:CGA330	10:1/8" Ferrule Fitting	N: Needle Valve
		G		L:0-25psig	(psi/bar)	24:CGA350	11:1/4" Ferrule Fitting	D: Diaphragm Valve
		J		M:0-15psig	W:No pressure gauge	27:CGA580	12:3/8" Ferrule Fitting
				Q:30"Hg Vac-30psi		28:CGA660	15:6mm Ferrule Fitting
				S: 30"Hg Vac-60psig		30:CGA590	Other options available
				T:30"Hg Vac-100psig		52:G5/8"-RH(F)
				U:30"Hg Vac-200psig		63:W21.8-14RH(F)
						64:W21.8-14LH(F)
						Other options available

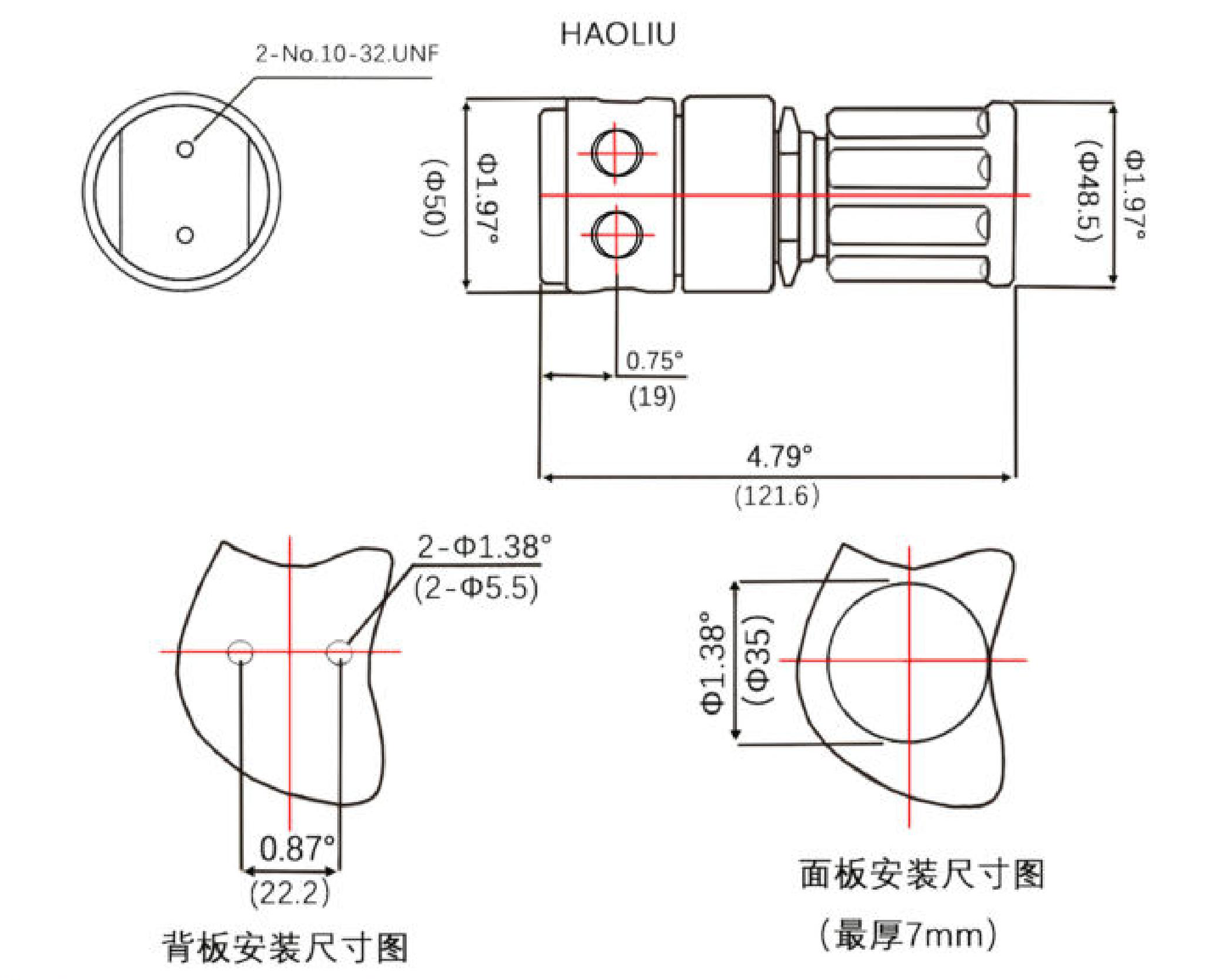

NOTE: Dimensions subject to change, to be used for reference only.For detailed parameters,please consult HAL technical support.
