Double-Sided Gas Control Panel

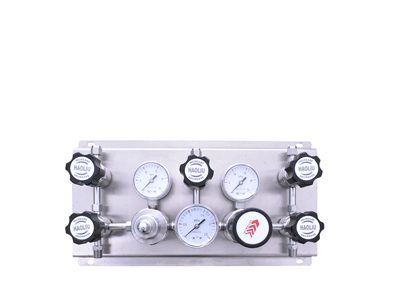

HL223 Series Double-Sided Gas Control Panel

Hotline:

+86 18721872815

product description

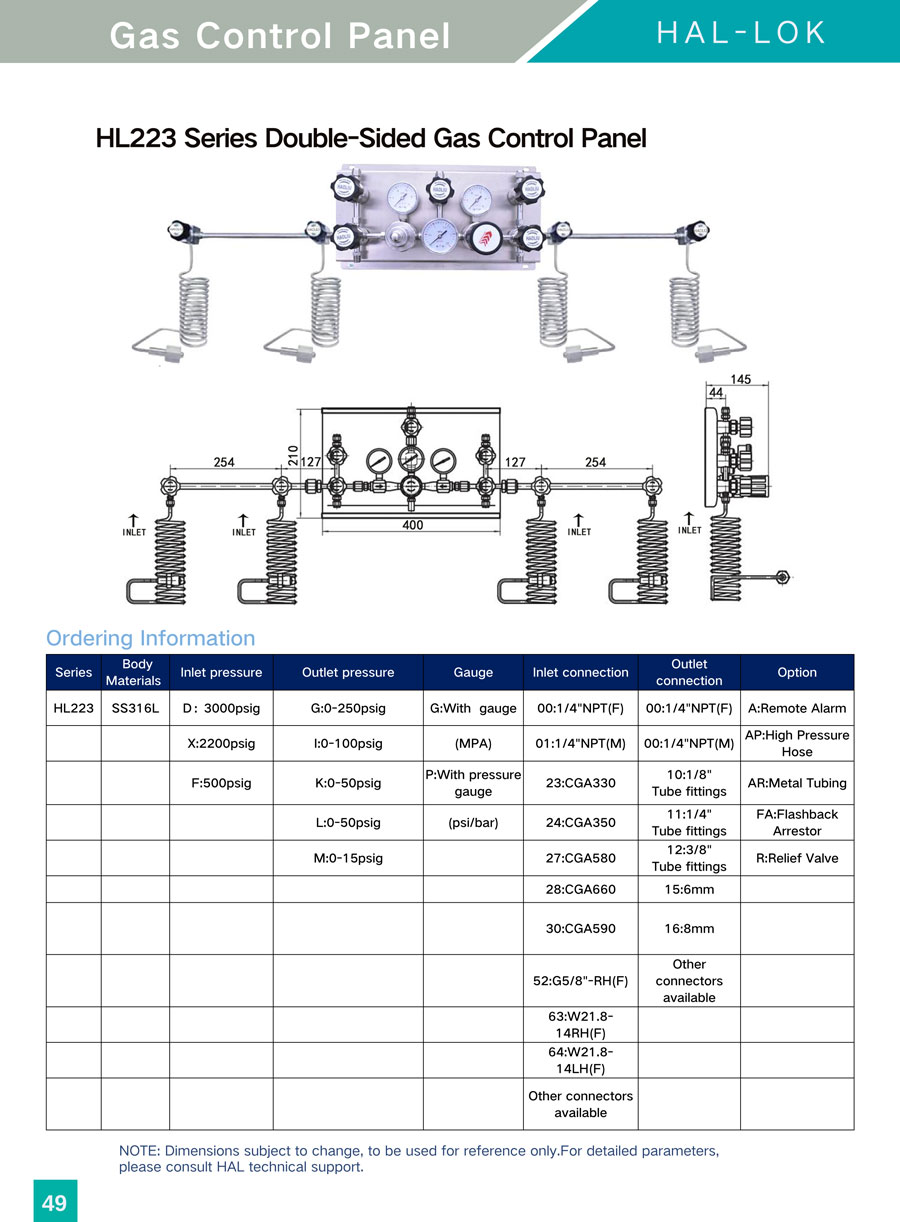

Ordering Information:

Series	Body Materials	Inlet Pressure	Outlet Pressure	Pressure Gauge	Inlet Connection	Outlet Connection	Options
HL223	SS316L	D:3000psig	G: 0-250psig	G:With pressure gauge	00:1/4"NPT (F)	00:1/4"NPT(F)	A:Remote Alarm
		X:2200psig	I:0~100psig	(MPa)	01:1/4"NPT(M)	01:1/4"NPT(M)	AP:High Pressure Hose
		F: 500psig	K:0-50psig	P:With pressure gauge	23:CGA330	10:1/8" Tube fittings	AR:Metal Tubing
			L:0-50psig	(psi/bar)	24:CGA350	11:1/4" Tube fittings	FA:Flashback Arrestor
			M:0-15psig		27:CGA580	12:3/8" Tube fittings	D:Outlet Diaphragm Valve
					28:CGA660	15:6mm Tube fittings
					30:CGA590	16:8mm Tube fittings
					52:G5/8"-RH(F)	Other connectors available
					63:W21.8-14RH(F)
					64:W21.8-14LH(F)
					Other connectors available

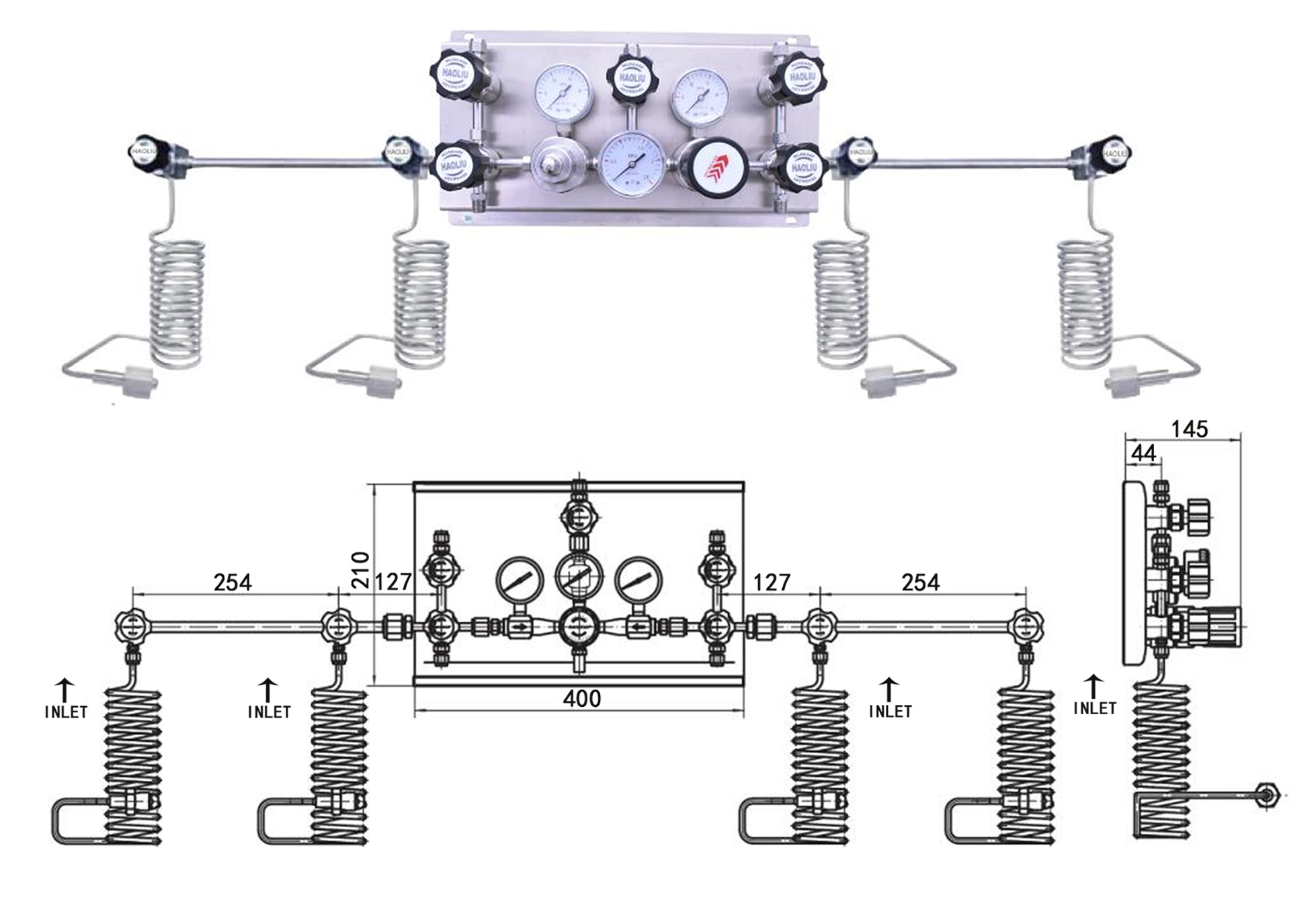

NOTE: Dimensions subject to change, to be used for reference only.For detailed parameters,please consult HAL technical support.

Related Products

Advantage

Precision-Engineered

Expertly crafted for superior leak-proof performance and extended service life.
High-Pressure Rated

Robust construction guarantees reliable operation in high-pressure environments.
Corrosion Resistant

Manufactured from premium stainless steel to withstand corrosive media.
Fully Interchangeable

Standard dimensions ensure seamless replacement with major international brands.
Rigorously Tested

Every product is stringently inspected under our ISO9001 quality system.
Versatile Applications

Suitable for a wide range of industries, from semiconductors to biopharma.
Premium Materials

High-grade stainless steel core components ensure integrity from the start.
Globally Proven

Trusted by customers worldwide for proven performance and reliability.
