Single-Cylinder Manual Gas Control Panel

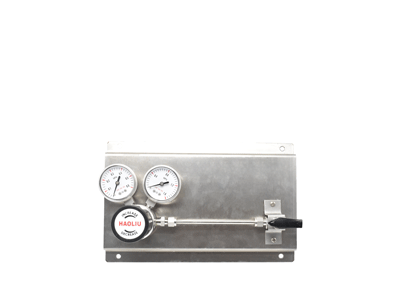

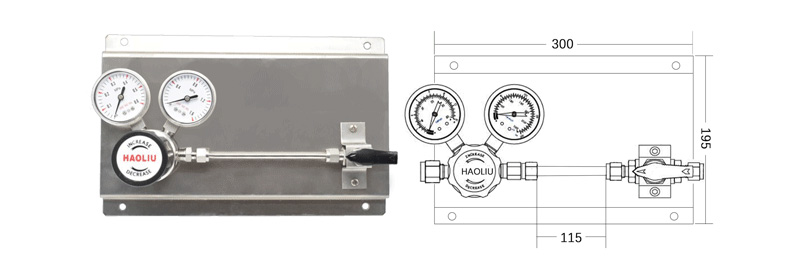

HLG25SL Series Single-Cylinder Manual Gas Control Panel

Hotline:

+86 18721872815

product description

HLG25SL Series Single-Bottle Manual Gas Control Panel

Series	Body Materials	Body ports	Inlet pressure	Outlet pressure	Gauge	Inlet connection	Outlet connection	Option
HLG25SL	SS316L	A	D:3000psig	G:0-250psig	G:With gauge	00:1/4"NPT(F)	00:1/4"NPT(F)	A:Remote Alarm
		B	X:2200psig	I:0-100psig	(MPA)	01:1/4"NPT(M)	01:1/4"NPT(M)	AP:High Pressure Hose
		D	F:1500psig	K:0-50psig	P:With pressure gauge	23:CGA330	10:1/8" Tube fittings	AR:Metal Tubing
				L:0-25psig	(psi/bar)	24:CGA350	11:1/4" Tube fittings	F:Relief Valve
				M:0-15psig	W:Without gauge	27:CGA580	12:3/8" Tube fittings
						28:CGA660	15:6mm Tube fittings
						30:CGA590	16:8mm Tube fittings
						52:G5/8"-RH(F)	Other connectors available
						63:W21.8- 14RH(F
						64:W21.8- 14LH(F)
						Other connectors available

Related Products

Advantage

Precision-Engineered

Expertly crafted for superior leak-proof performance and extended service life.
High-Pressure Rated

Robust construction guarantees reliable operation in high-pressure environments.
Corrosion Resistant

Manufactured from premium stainless steel to withstand corrosive media.
Fully Interchangeable

Standard dimensions ensure seamless replacement with major international brands.
Rigorously Tested

Every product is stringently inspected under our ISO9001 quality system.
Versatile Applications

Suitable for a wide range of industries, from semiconductors to biopharma.
Premium Materials

High-grade stainless steel core components ensure integrity from the start.
Globally Proven

Trusted by customers worldwide for proven performance and reliability.
