Male VCR Fitting End

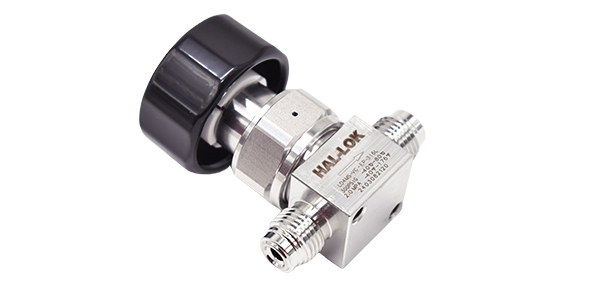

Stainless Steel Low Pressure Diaphragm Sealed Valve Male VCR Fitting 1/4in
Contact Us Now
Hotline:
+86 18721872815
product description

    Features:

  • Diaphragm metal-to-metal sealed to atmosphere

  • Optimal design for long cycle life

  • Handle with window provides visual indication of OPEN and CLOSE positions

  • Maximum Working Pressure:300psi(20.7bar）

  • Working Temperature:-40℃ to 80℃(-40℉ to 176℉)

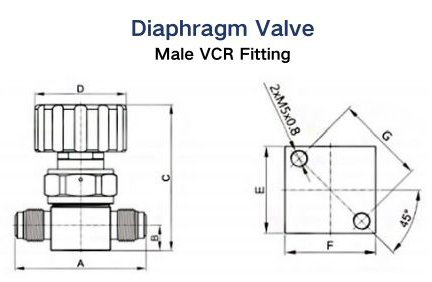

Basic Ordering

Number

Connection

(VCR)

Dimensions(mm)
ABCDEFG

MDGM-4

1/4in.

57.0

11.0

63.0

40.0

25.0

26.0

25.4

MDGM-81/2in.77.016.076.040.036.036.028.0


Related Products
Advantage
  • Precision-Engineered
    Expertly crafted for superior leak-proof performance and extended service life.
  • High-Pressure Rated
    Robust construction guarantees reliable operation in high-pressure environments.
  • Corrosion Resistant
    Manufactured from premium stainless steel to withstand corrosive media.
  • Fully Interchangeable
    Standard dimensions ensure seamless replacement with major international brands.
  • Rigorously Tested
    Every product is stringently inspected under our ISO9001 quality system.
  • Versatile Applications
    Suitable for a wide range of industries, from semiconductors to biopharma.
  • Premium Materials
    High-grade stainless steel core components ensure integrity from the start.
  • Globally Proven
    Trusted by customers worldwide for proven performance and reliability.
