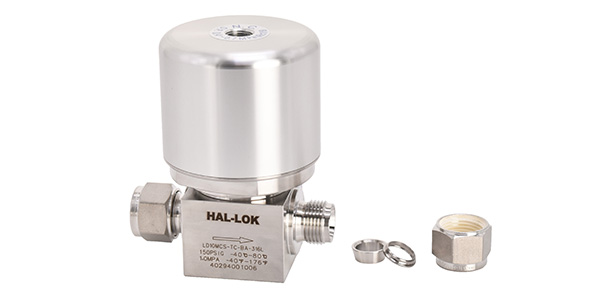

Stainless Steel Low-Pressure Pneumatic Diaphragm Valve 1/4 in. Tube Fitting
Contact Us Now
Hotline:
+86 18721872815
product description


Technical Specifications
Connection Size(in.)1/4"3/8",1/2"3/4"
Flow Coefficient(Cv)0.270.71.7
Maximum working pressure250psi (17.2bar)
Working TemperaturePCTFE-40℃-80℃(-40℉-176℉)
PFA,Vespel®-26℃-177℃ (-15℉-350℉)
Internal/External Leak Rate≤1×10−9-std cm3/s(He)


Ordering

Number

Port Size

in.

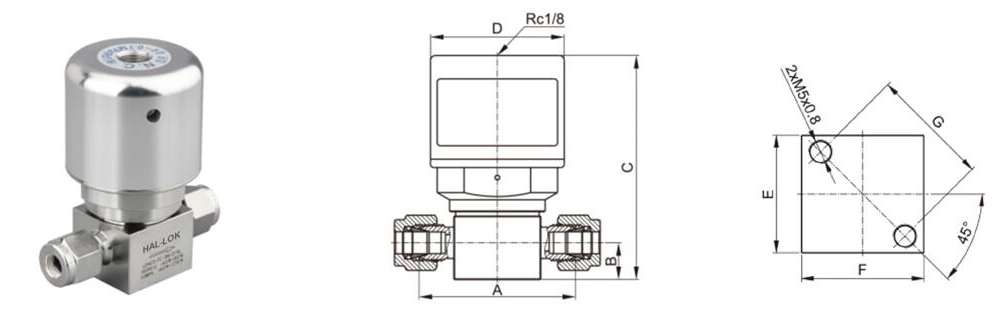

Operating(Normally)Dimensions,mm
ABCDEFG

QSGF-4C

1/4

CLOSE

48.0

11.0

67.0

40.025.026.025.4

QSGF-4O

1/4

OPEN

48.0

11.0

67.0

40.025.026.025.4

QSGF-6C

3/8

CLOSE

64.0

16.0

84.0

55.036.036.028.0

OSGF-6O

3/8

OPEN

64.0

16.0

77.5

55.036.026.028.0

QSGF-8C

1/2

CLOSE

64.0

16.0

84.0

55.036.036.028.0
QSGF-8O1/2OPEN64.016.077.555.036.036.028.0
