Features:
Material£º316SS,316L SS
Tube wall uniformity to promote weld repeatability
Machined from forging blanks except for straight configurations
Extended tube design

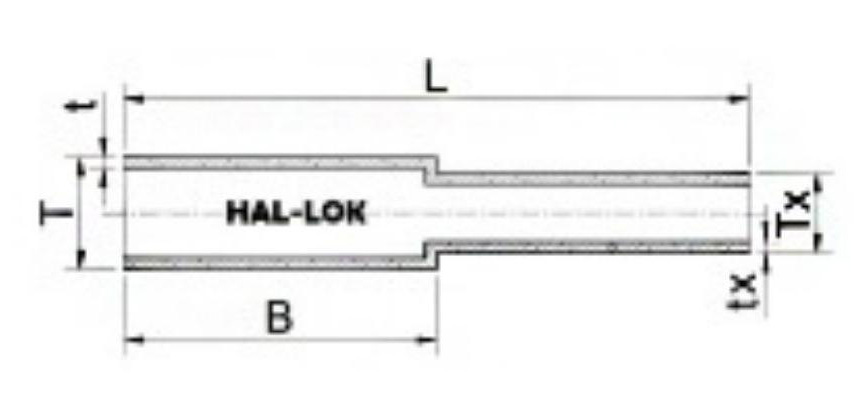

Basic Ordering Number | Dimensions,mm | |||||
| T | t | Tx | tx | B | L | |
HKM-6-4 | 3/8in. | 1 | 1/4in. | 1 | 25 | 50 |
HKM-8-4 | 1/2in. | 1.24 | 1/4in. | 1 | 25 | 50 |
HKM-8-6 | 1/2in. | 1.24 | 3/8in. | 1 | 25 | 50 |
HKM-12-8 | 3/4in. | 1.65 | 1/2in. | 1.24 | 25 | 50 |
| HKM-12-6 | 3/4in. | 1.65 | 3/8in. | 1.24 | 25 | 50 |
