Features:
Material:316SS,316L SS
Tube wall uniformity to promote weld repeatability

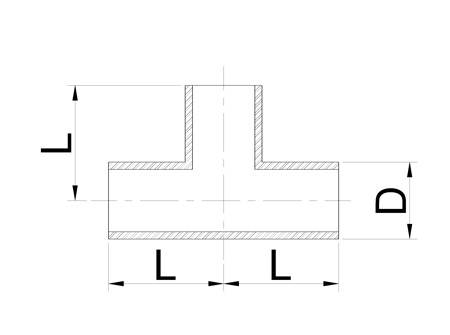

Basic Ordering Number | Size(in) | Dimenions,mm | |
| D | L | ||
TA-8-SS | 1/2 | 12.7 | 19.00 |
TA-12-SS | 3/4 | 19.1 | 28.60 |
TA-16-SS | 1 | 25.4 | 28.60 |
TA-20-SS | 1 1/4 | 31.8 | 35.00 |
TA-22-SS | 1 1/2 | 38.1 | 42.00 |
TA-32-SS | 2 | 50.8 | 52.30 |
TA-40-SS | 2 1/2 | 63.5 | 59.50 |
TA-48-SS | 3 | 76.2 | 65.90 |
| TA-64-SS | 4 | 101.6 | 87.40 |
| TA-96-SS | 6 | 152.4 | 127.00 |

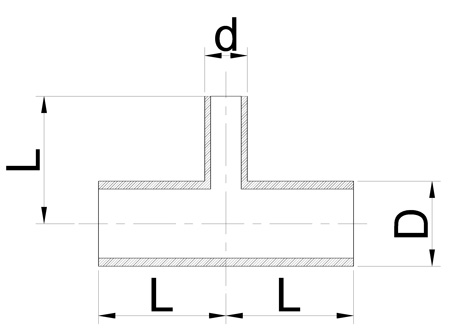

Basic Ordering Number | Size D(in) | Size d(in) | Dimenions,mm | ||
| D | d | L | |||
| RTA-8-6-SS | 1/2 | 3/8 | 12.7 | 9.53 | 47.6 |
| RTA-12-4-SS | 3/4 | 1/4 | 19.1 | 6.35 | 50.8 |
| RTA-12-8-SS | 3/4 | 1/2 | 19.1 | 12.7 | 50.8 |
| RTA-16-4-SS | 1 | 1/4 | 25.4 | 6.35 | 54.0 |
| RTA-20-4-SS | 1 1/4 | 1/4 | 38.1 | 6.35 | 60.3 |
| RTA-20-8-SS | 1/2 | 38.1 | 12.7 | 60.3 | |
| RTA-16-6-SS | 1 | 3/8 | 25.4 | 9.53 | 54.0 |
| RTA-16-8-SS | 1/2 | 25.4 | 12.7 | 54.0 | |
| RTA-16-12-SS | 3/4 | 25.4 | 19.1 | 54.0 | |
| RTA-20-12-SS | 1 1/4 | 3/4 | 38.1 | 19.1 | 60.3 |
| RTA-20-16-SS | 1 | 38.1 | 25.4 | 60.3 | |
| RTA-32-4-SS | 2 | 1/4 | 50.8 | 6.35 | 66.7 |
| RTA-32-6-SS | 3/8 | 50.8 | 9.53 | 66.7 | |
| RTA-32-8-SS | 1/2 | 50.8 | 12.7 | 66.7 | |
| RTA-32-12-SS | 3/4 | 50.8 | 19.1 | 66.7 | |
| RTA-32-16-SS | 1 | 50.8 | 25.4 | 66.7 | |
| RTA-32-20-SS | 1/4 | 50.8 | 38 1 | 66.7 | |
| RTA-40-6-SS | 2 1/2 | 3/8 | 63.5 | 9.53 | 73.0 |
| RTA-40-8-SS | 1/2 | 63.5 | 12.7 | 73.0 | |
| RTA-40-16-SS | 1 | 63.5 | 25.4 | 73.0 | |
| RTA-40-20-SS | 1 1/4 | 63.5 | 38.1 | 73.0 | |
| RTA-40-32-SS | 2 | 63.5 | 50.8 | 73.0 | |
| RTA-48-8-SS | 3 | 1/2 | 76.2 | 12.7 | 79.4 |
| RTA-48-12-SS | 3/4 | 76.2 | 19.1 | 79.4 | |
| RTA-48-16-SS | 1 | 76.2 | 25.4 | 79.4 | |
| RTA-48-20-SS | 1 1/4 | 76.2 | 38.1 | 79.4 | |
| RTA-48-32-SS | 2 | 76.2 | 50.8 | 79.4 | |
| RTA-48-40-SS | 2 1/2 | 76.2 | 63.5 | 79.4 | |
| RTA-64-8-SS | 4 | 1/2 | 101.6 | 12.7 | 92.1 |
| RTA-64-12-SS | 3/4 | 101.6 | 19.1 | 92.1 | |
| RTA-64-16-SS | 1 | 101.6 | 25.4 | 92.1 | |
| RTA-64-20-SS | 1 1/4 | 101.6 | 38.1 | 92.1 | |
| RTA-64-32-SS | 2 | 101.6 | 50.8 | 98.4 | |
| RTA-64-40-SS | 2 1/2 | 101.6 | 63.5 | 98.4 | |
| RTA-64-48-SS | 3 | 101.6 | 76.2 | 98.4 | |
