Features:
Available materials:SS304,SS316,904L,Alloy,etc.
Available in size:1/8" to 1"
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc.
Working temperature:-4 to 392℉(-20 to 200℃)
Working pressure:up to 3000psig(206bar)
Smooth thread flanks provide optimum sealing and minimize galling.

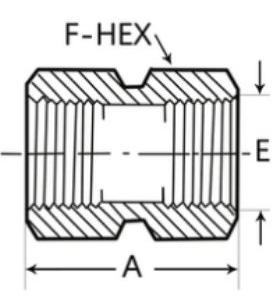

NPT size in. | Ordering Number | Dimensions(mm) | ||
| A | E | F | ||
| 1/8 | WLN-01 | 25 | 8 | 14 |
| 1/4 | WLN-02 | 35 | 11 | 17 |
| 3/8 | WLN-03 | 35 | 14 | 22 |
| 1/2 | WLN-04 | 39 | 18 | 27 |
| 3/4 | WLN-06 | 43 | 23 | 35 |
| 1 | WLN-08 | 49 | 29 | 40 |
NPT size in. P | NPT size in. P1 | Ordering Number | Dimensions(mm) | ||
| A | E | F | |||
| 1/4 | 1/8 | RWN-02-01 | 29 | 5 | 14 |
| 3/8 | 1/8 | RWN-03-01 | 31 | 5 | 17 |
| 1/4 | RWN-03-02 | 32 | 6 | 17 | |
| 1/2 | 1/8 | RWN-04-01 | 35 | 5 | 22 |
| 1/4 | RWN-04-02 | 38 | 6 | 22 | |
| 3/8 | RWN-04-03 | 39 | 8 | 22 | |
| 3/4 | 1/4 | RWN-06-02 | 41 | 6 | 27 |
| 3/8 | RWN-06-03 | 42 | 8 | 27 | |
| 1/2 | RWN-06-04 | 45 | 10 | 27 | |
| 1 | 1/2 | RWN-08-04 | 51 | 10 | 35 |
| 3/4 | RWN-08-06 | 53 | 15 | 35 | |
